pannavision
Stückliste Rev. 1
Bauanleitung

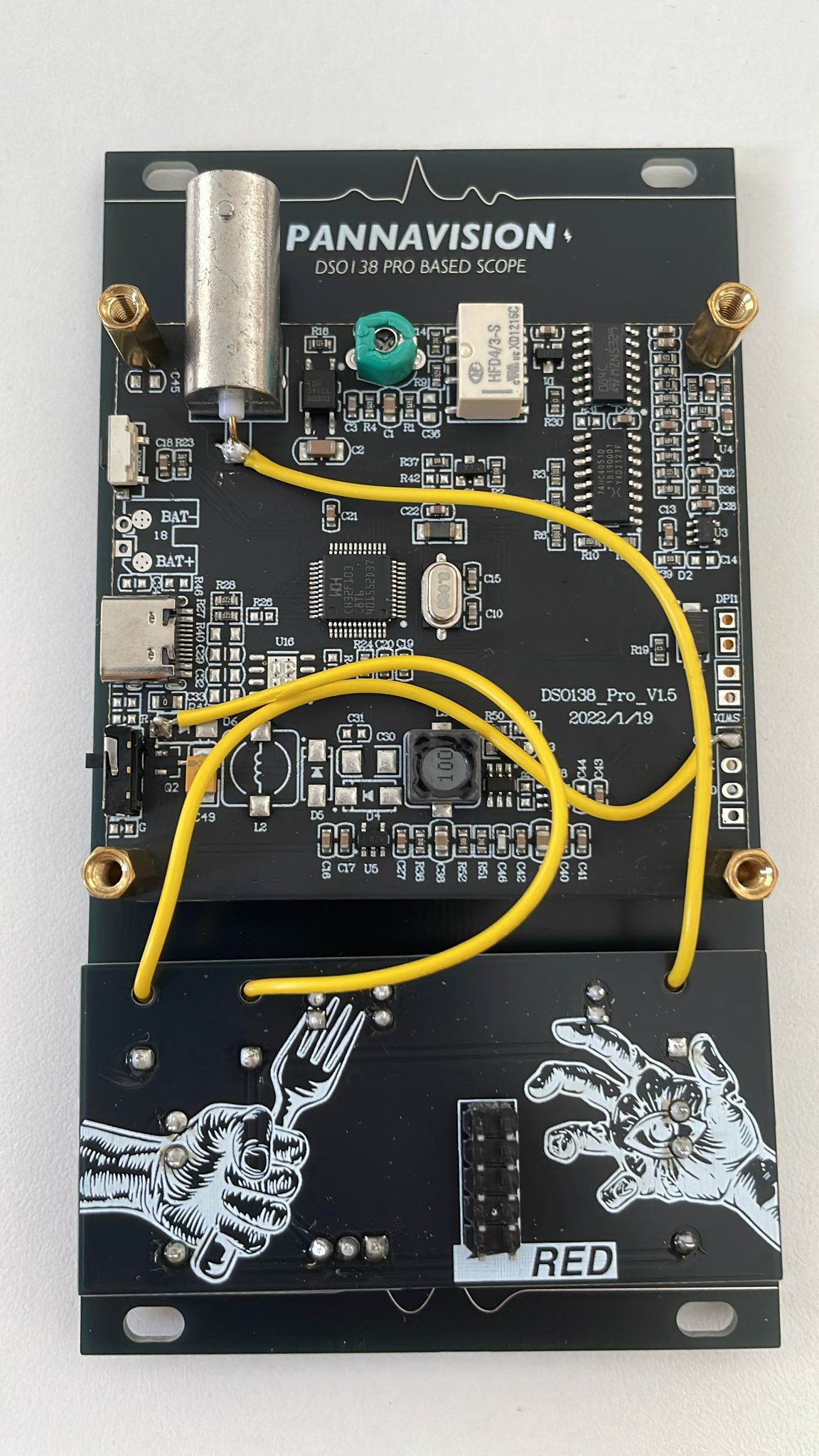

To connect the scope to the PCB solder 3 wires to the +5V, GND and Input pads of the PCB and connect them to the scope like on this picture:
| ID | Bezeichner | Package | Anzahl | Vorbestückt | Beschreibung | Anbieter |
|---|---|---|---|---|---|---|
| 1 | C2, C3 | CP Radial D5.0mm P2.00mm | 2 | 10uf | AE | |
| 2 | J4, J5 | PJ301M-12 | 2 | PJ301M-12 | Buchsen | |
| 4 | LM7805 | TO-220-3 Vertical | 1 | LM7805_TO220 | AE | |
| 8 | C1 | C Disc D3.0mm W1.6mm P2.50mm | 1 | 100nf | AE | |
| 10 | J1 | Eurorack Power Header | 1 | EURO_PWR_2x5 | Stecker für Stromversorgung | |
| 11 | S1 | DSO138 Pro | 1 | DSO 138 Pro | AE |
