Stückliste Rev. 1.1
Bauanleitung

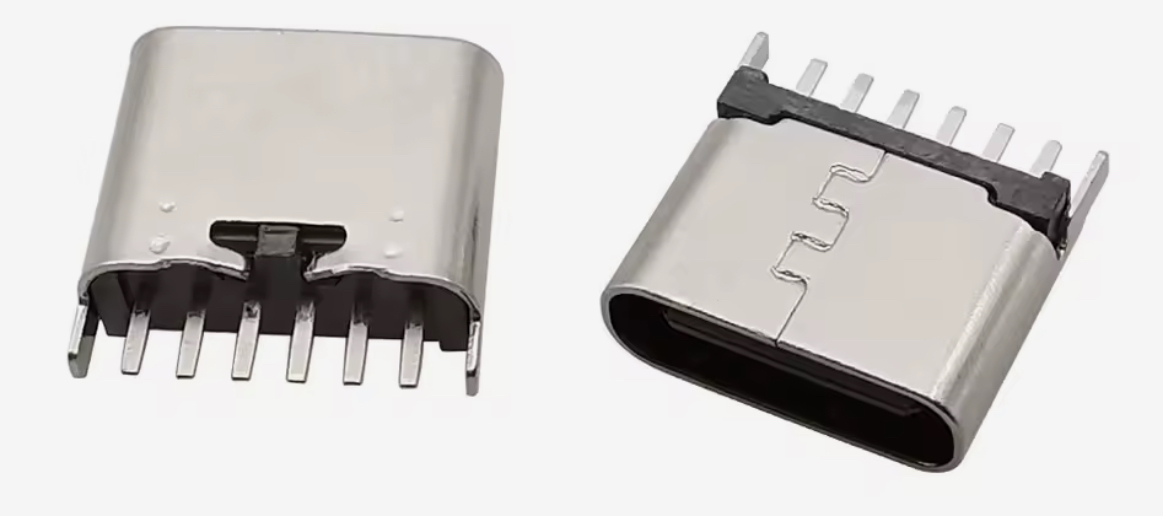

This is the correct USB-C connector:
| ID | Bezeichner | Package | Anzahl | Vorbestückt | Beschreibung | Anbieter |
|---|---|---|---|---|---|---|
| 1 | R1, R2, R3 | R Axial DIN0204 L3.6mm D1.6mm P5.08mm Horizontal | 3 | 5K1 | ||
| 2 | C1, C2, C3 | CP Radial D5.0mm P2.50mm | 3 | 10uF | ||
| 3 | R4 | R Axial DIN0204 L3.6mm D1.6mm P5.08mm Horizontal | 1 | 1M | ||
| 4 | D1 | LED D3.0mm | 1 | LED | ||
| 5 | J2 | USB C Plug Vertical 6P THT | 1 | USB_C_Receptacle_PowerOnly_6P | AE | |
| 6 | J1 | PinHeader 1x05 P2.54mm Vertical | 1 | Conn_01x05_Socket | ||
| 7 | J3 | IDC-Header 2x08 P2.54mm Vertical | 1 | Eurorack Power | ||
| 8 | S1 | Spacer | 2 | 5mm M3 Spacer | ||
| 9 | B1 | Step-Up Board | 1 | DD1718PA +-12V | AE |
